How to Design Reliable Screw Connections for Metal and Nylon 3D Printed Parts

Threaded holes are one of the most common features in engineering parts.

Whether it is a metal bracket, plastic enclosure, or functional prototype, engineers often need reliable fastening methods.

However, adding threads to 3D printed parts requires different considerations depending on the material.

A threaded connection that works well in metal may fail in nylon.

A solution suitable for a prototype enclosure may not be suitable for repeated assembly.

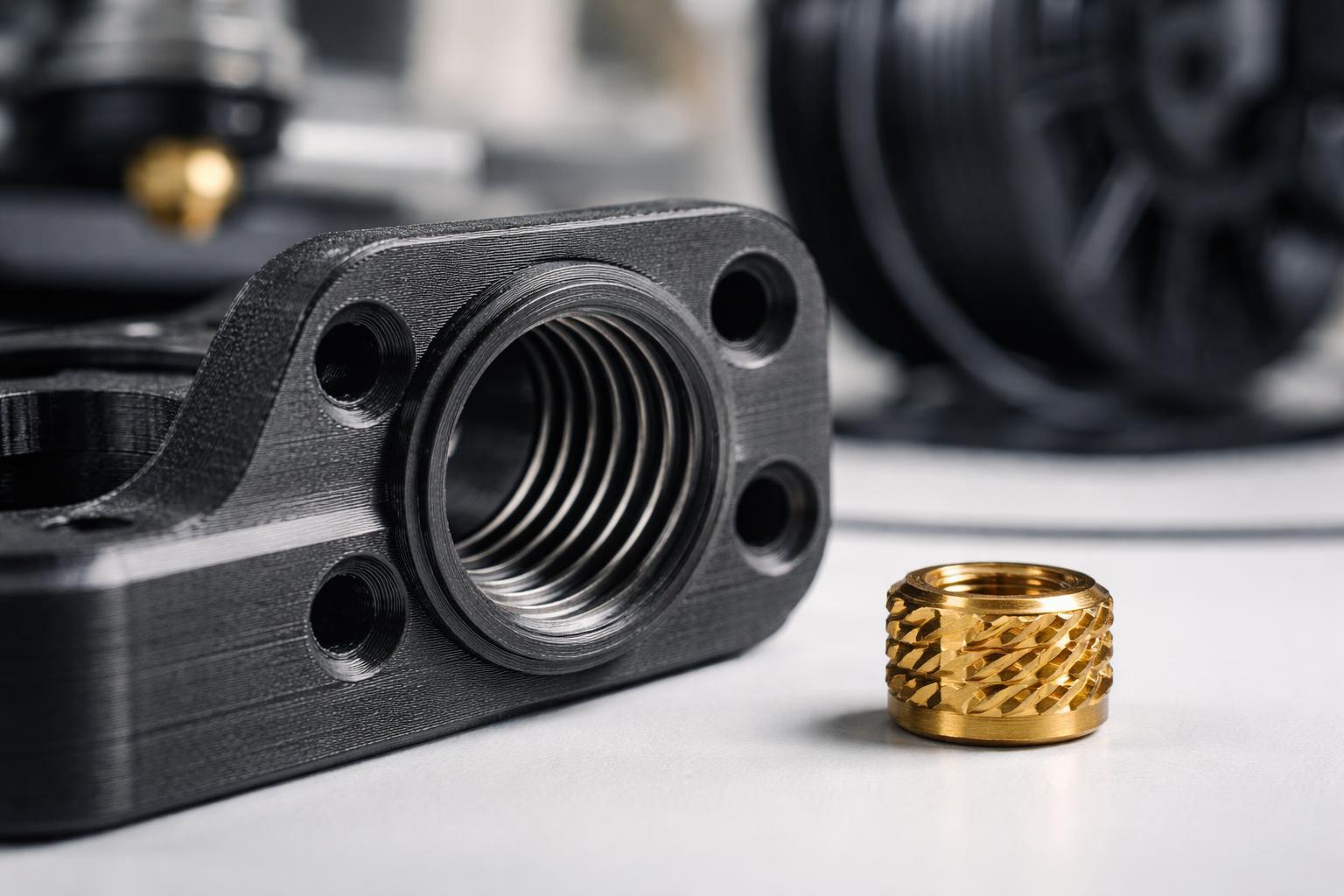

This article explains the most common methods for adding threads to 3D printed metal and plastic parts, including:

• Machined threads in metal 3D printed parts

• Tapped threads in nylon parts

• Heat-set threaded inserts

• Embedded metal inserts

Threading Metal 3D Printed Parts

Metal additive manufacturing materials such as:

• 316L stainless steel

• 17-4PH stainless steel

• Aluminum alloys

• Titanium alloys

can generally support traditional machining operations after printing.

Common post-processing includes:

• Drilling

• CNC machining

• Thread tapping

Why Machined Threads Are Preferred for Metal Parts

Although it is possible to print threads directly, critical threaded features are usually machined afterward.

Reasons include:

Better Accuracy

Printed threads may be affected by:

• Layer resolution

• Surface roughness

• Powder particles

• Support structures

Machining provides more reliable thread profiles.

Better Surface Quality

Machined threads provide:

• Smooth engagement

• Consistent torque

• Reduced wear

This is especially important for:

• Assembly parts

• Mechanical components

• Repeated installation

Recommended Approach for Metal Printed Parts

For functional metal parts:

1. Print the component with sufficient material allowance

2. Drill the hole if required

3. Machine the thread

4. Inspect the final dimension

This hybrid approach combines the advantages of metal printing and CNC machining.

Thread Tapping in Nylon 3D Printed Parts

Industrial nylon materials such as:

• PA12 (MJF/SLS)

• PA11

• PA12 GF

• PA12 CF

can also be tapped.

However, the application needs to be considered carefully.

Advantages of Tapped Nylon Threads

Simple and Low Cost

No additional inserts are required.

The process is straightforward:

Printed hole → Drill → Tap thread

Suitable for Low Assembly Cycles

Tapped nylon threads work well when:

• The screw is installed occasionally

• The part is mainly a prototype

• Assembly frequency is low

Examples:

• Prototype housings

• Test fixtures

• Covers

Limitations of Nylon Threads

Compared with metal threads, nylon threads have lower strength.

Potential issues include:

• Thread wear

• Stripping under high torque

• Reduced durability after repeated assembly

For frequently opened enclosures, direct tapping may not be the best solution.

Heat-Set Inserts for Nylon Parts

Heat-set inserts are one of the most common solutions for plastic 3D printed parts.

The insert is heated and pressed into a prepared hole.

The surrounding plastic melts slightly and forms a strong mechanical connection.

Advantages of Heat-Set Inserts

Stronger Thread Connection

The load is transferred through metal instead of plastic.

Benefits:

• Higher tightening torque

• Better wear resistance

• More assembly cycles

Ideal for Product Enclosures

Common applications:

• Electronics housings

• Consumer products

• Industrial covers

For products that need repeated opening and closing, inserts are usually preferred.

Limitations

Heat-set inserts require:

• Additional installation process

• Correct hole design

• Proper alignment

They also add a small amount of cost.

Embedded Metal Inserts

For higher-performance applications, metal inserts can be integrated during manufacturing.

Examples include:

• Threaded bushings

• Captive nuts

• Brass inserts

• Stainless steel inserts

Advantages

• Very strong connection

• Excellent durability

• Suitable for heavy loads

Applications include:

• Industrial equipment

• High-strength assemblies

• Structural plastic parts

Comparison Table

How Should Engineers Choose?

Choose Machined Threads When:

• The part is metal

• High strength is required

• Precision matters

Example:

316L metal printed mechanical bracket.

Choose Tapped Nylon When:

• The prototype is temporary

• Assembly cycles are limited

• Cost needs to be minimized

Example:

PA12 prototype housing for testing.

Choose Inserts When:

• The enclosure will be opened repeatedly

• Screw strength matters

• The product needs durability

Example:

Electronic device housing.

Design Tips for Better Thread Performance

Avoid Threads Too Close to Thin Walls

Thin walls can crack during tightening.

Allow sufficient surrounding material.

Consider Screw Size Carefully

Small screws create higher stress concentration.

For plastic parts, larger thread engagement is usually preferred.

Design for the Manufacturing Process

The best thread solution depends on:

• Material

• Part thickness

• Assembly frequency

• Required strength

There is no universal solution.

Conclusion

3D printed parts can support reliable threaded connections, but the correct method depends on the material and application.

For metal 3D printed parts, CNC-machined threads usually provide the highest reliability.

For nylon parts, direct tapping works for prototypes, while heat-set inserts or embedded metal inserts provide better durability for repeated assembly.

By choosing the right threading method during the design stage, engineers can create stronger and more reliable 3D printed products.
