Project Overview

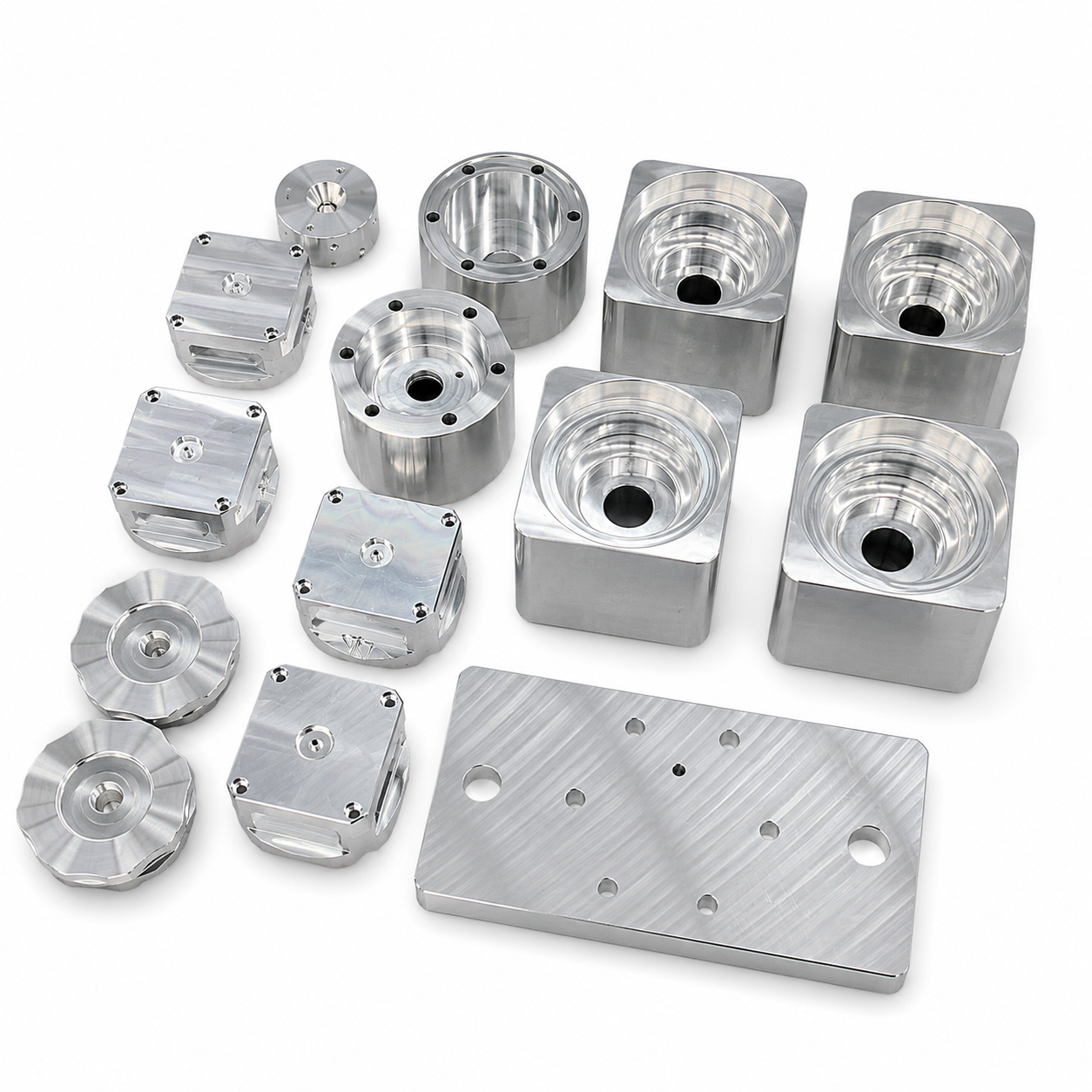

This project involved the machining of multiple precision aluminum components using advanced 5-axis CNC machining technology.
The customer required complex geometries, tight dimensional tolerances, and high-quality surface finishes for industrial applications.
The use of 5-axis machining significantly reduced setup time while improving overall machining accuracy.
Why 5-Axis CNC Machining?
Compared with conventional 3-axis machining, 5-axis CNC machining allows the cutting tool to approach the workpiece from multiple directions.
Key advantages include:
- Fewer setups
- Higher dimensional accuracy
- Better surface finish
- Improved efficiency
- Capability to machine complex geometries
For this project, 5-axis machining enabled the production of deep cavities, angled surfaces, and precision features in a single setup.
Manufacturing Process
The manufacturing workflow included:
- Raw Material Preparation
- 5-Axis CNC Rough Machining
- Precision Milling
- Deburring
- Surface Finishing
- Final Quality Inspection
Each component was inspected before shipment to ensure compliance with customer specifications.
Material
Material: Aluminum Alloy
Characteristics:
- Lightweight
- Excellent Strength-to-Weight Ratio
- Good Machinability
- Corrosion Resistance
- High Dimensional Stability
Video Demonstration
The following video shows the actual machining process of the aluminum components on a 5-axis CNC machine.
The simultaneous movement of multiple axes allows efficient machining of complex features while maintaining excellent precision.
Applications
These components can be used in:
- Industrial Equipment
- Automation Systems
- Robotics
- Mechanical Assemblies
- Custom Engineering Projects
Need Custom CNC Machined Parts?
Upload your CAD files today and receive a manufacturing review and quotation within 24 hours.
